Advanced Geotechnical & Water Bore Rigs

Our geotechnical and water bore rigs are engineered to deliver precision and reliability in drilling services, ensuring the integrity of your projects. With state-of-the-art technology, they play a crucial role in obtaining accurate subsurface data for informed decision-making.

Unleashing the Power of Drilling Innovation

Our rigs are equipped with cutting-edge technology designed for optimal performance in challenging environments. With unparalleled capabilities, they ensure accurate data collection and analysis for every project.

Advanced sensors for precise geological assessments.

Robust design for enhanced durability and reliability.

Versatile applications across diverse geotechnical projects.

Our Rigs

Our rigs we offer include:
MK01
Inclusions:
Flashing Light, UHF
First Aid Kit, 1500L Water Tank
Flashing Light, UHF
First Aid Kit, 1000L Water Tank
Download Brochure

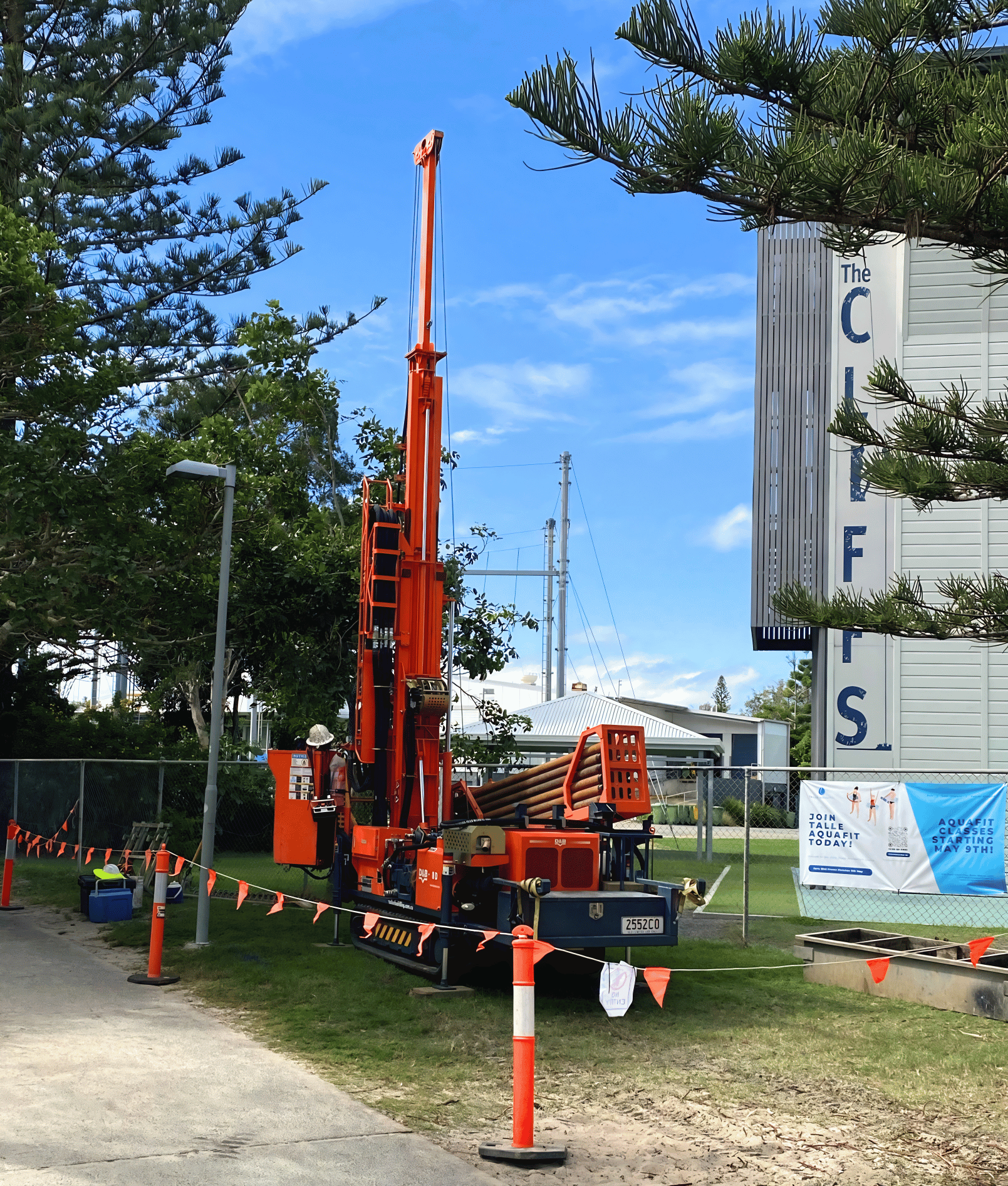

MK08
Inclusions:
Front mount winch, UHF
Flashing Light, 1700L Water Tank
First Aid Kit
Front mount winch, UHF
Flashing Light, 1700L Water Tank
First Aid Kit
Download Brochure

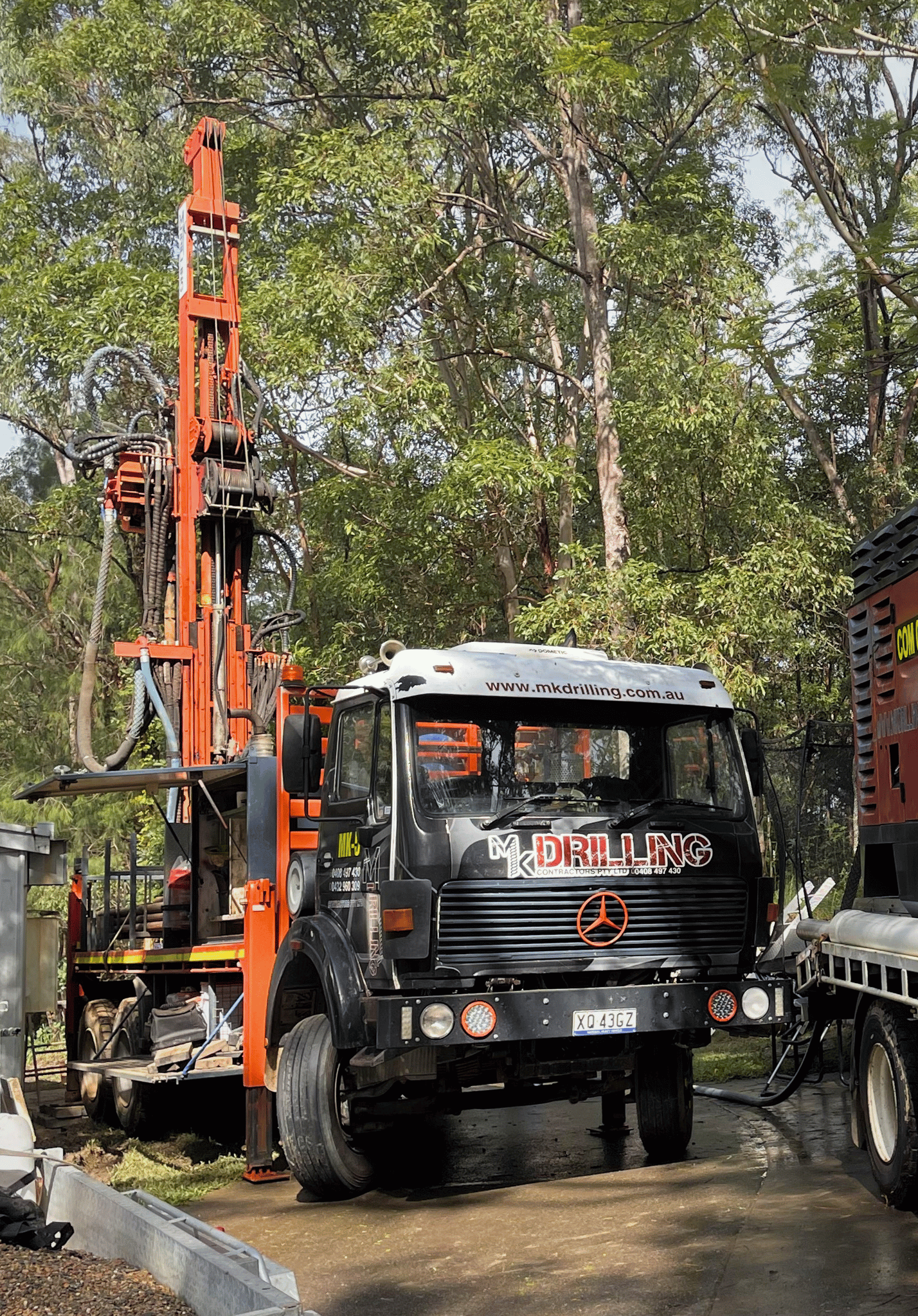

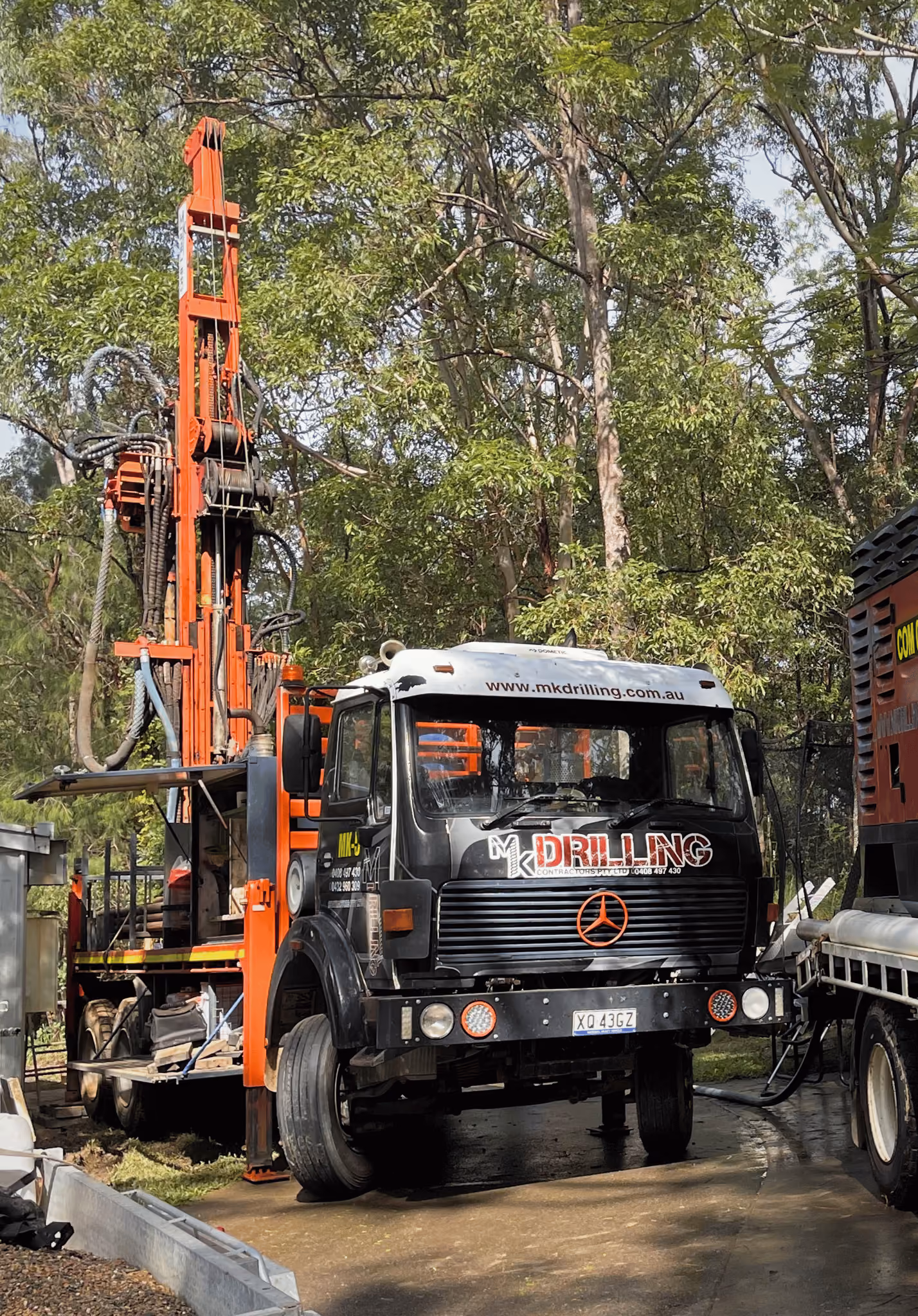

MK05
Inclusions:
Spill Kit: Yes
Rig Type: Truck Mounted
First Aid & Snake Bite Kit: Yes
Rig Year: 2019
Truck Carrier: Mercedes Benz 6x4

Safety:
Safety Cage / Interlock: Yes
Emergency Stops: Yes
Download Brochure
Rig Dimensions:
OA Length: 9.3m
OA Width: 2.5m
Height Traveling: 3.8m
Working Height: 9m
Weight: 19,000kg loaded
Rig Specs:
Max Pulldown: 7,000kg
Max Pullback: 12,000kg
Max Head Rotation: 950rpm
Max Head Torque: 7,500nm
Retract Speed: 20m/m
Pulldown Speed: 30m/m
Head Stroke: 4m
Working Table Diameter: 300mm
Main Winch Capacity: 4,000kg
Wireline Winch Capacity: 350kg
Auxiliary Winch Capacity: 700kg
Rod Pull: 7.5m
SPT Hammer: Yes
Push Tubes: U50, U63, U75, U100
Auger: 115mm to 15m, CBR to 1m
Rotary Air: 100mm to 200m / 200mm to 150m
Rotary Mud: 96mm to 100m / 150mm to 50m
Conventional Coring: NMLC, HMLC
Wireline Coring: NQ3 to 700m, HQ3 to 400m, PQ3 to 150m

Our support equipment

Our support equipment we offer include:
Hanjin D&B 8D
Inclusions:
Fire Extinguisher: Yes
Rig Type: Rubber tracked
Spill Kit: Yes
Drive Type: Wireless Remote Controlled
First Aid & Snake Bite Kit: Yes
Truck Carrier: Hino FM Beavertail / MAN18.340 Beavertail

Safety:
Safety Cage / Interlock: Yes
Emergency Stops: Yes
Download Brochure
Rig Dimensions:
Tracking Length: 5.4m
Tracking Width: 2m
Tracking Height: 2m
Height Mast Raised: 6.6m shEditor ort / 8.6m extended
Weight: 5500kgs
Rig Specs:
Max Pull Down: 4000kg
Max Pull Back: 8000kg
Max Head Rotation: 800 RPM
Max Head Torque: 3530nm
Retract Speed: 25m/min
Pull Down Speed: 30m/min
Head Stroke: 3.5m
Working Table Diameter: 250mm
Main Winch Capacity: 3000kg
Wireline Winch Capacity: 350kg
Rod Pull: 6m
Automatic SPT Hammer: Yes
Push Tubes: U50, U63, U75, U100
Auger: 115mm to 15m, CBR to 1m
Rotary Air: 100mm to 150m / 200mm to 90m
Rotary Mud: 96mm to 100m / 150mm to 50m
Conventional Coring: NMLC, HMLC
Wireline Coring: NQ3, HQ3, PQ3

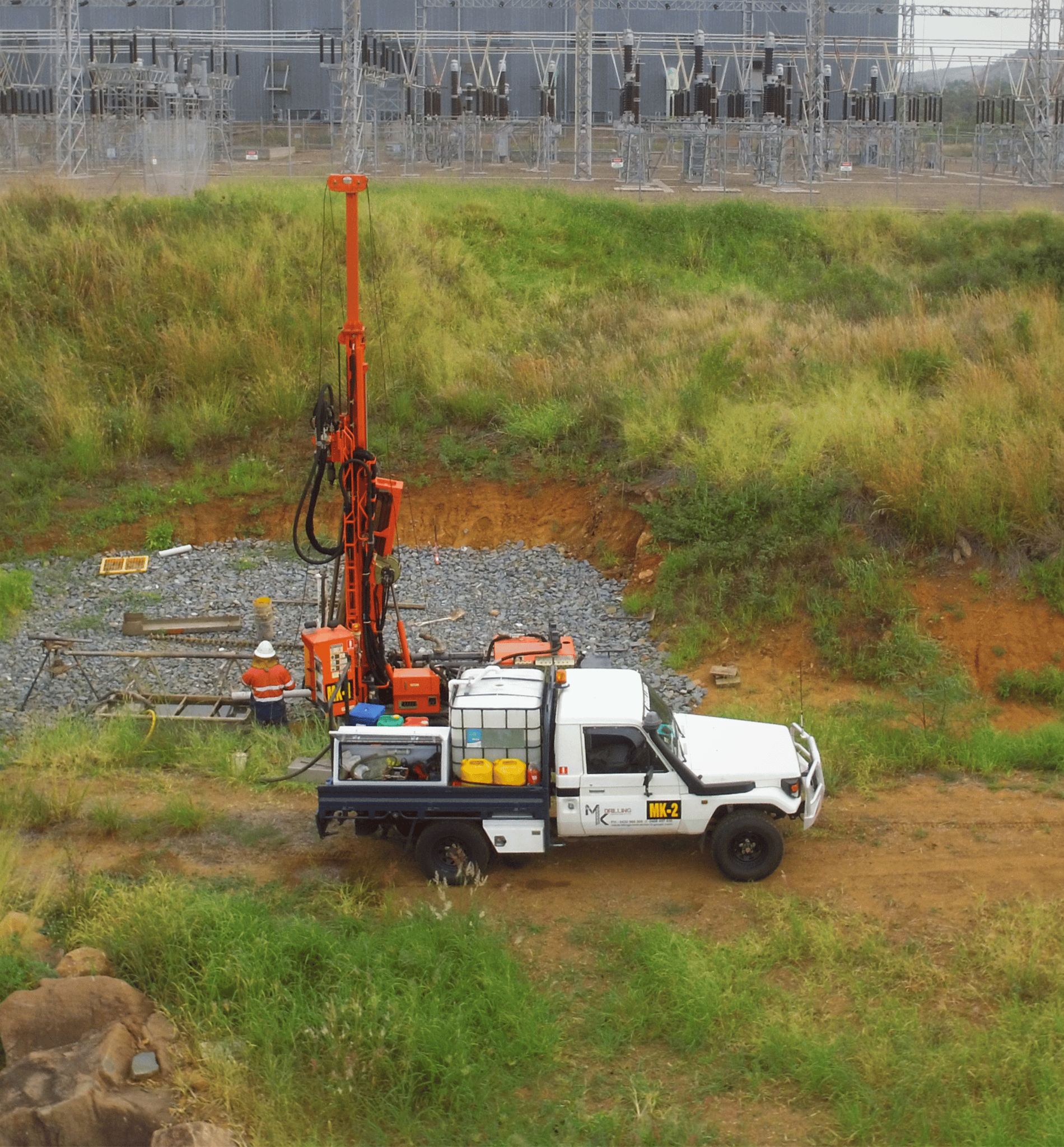

MK02 TOYOTA LANDCRUISER 4.2TD
Inclusions:
Flashing Light, UHF
First Aid Kit, 1000L Water Tank
Download Brochure

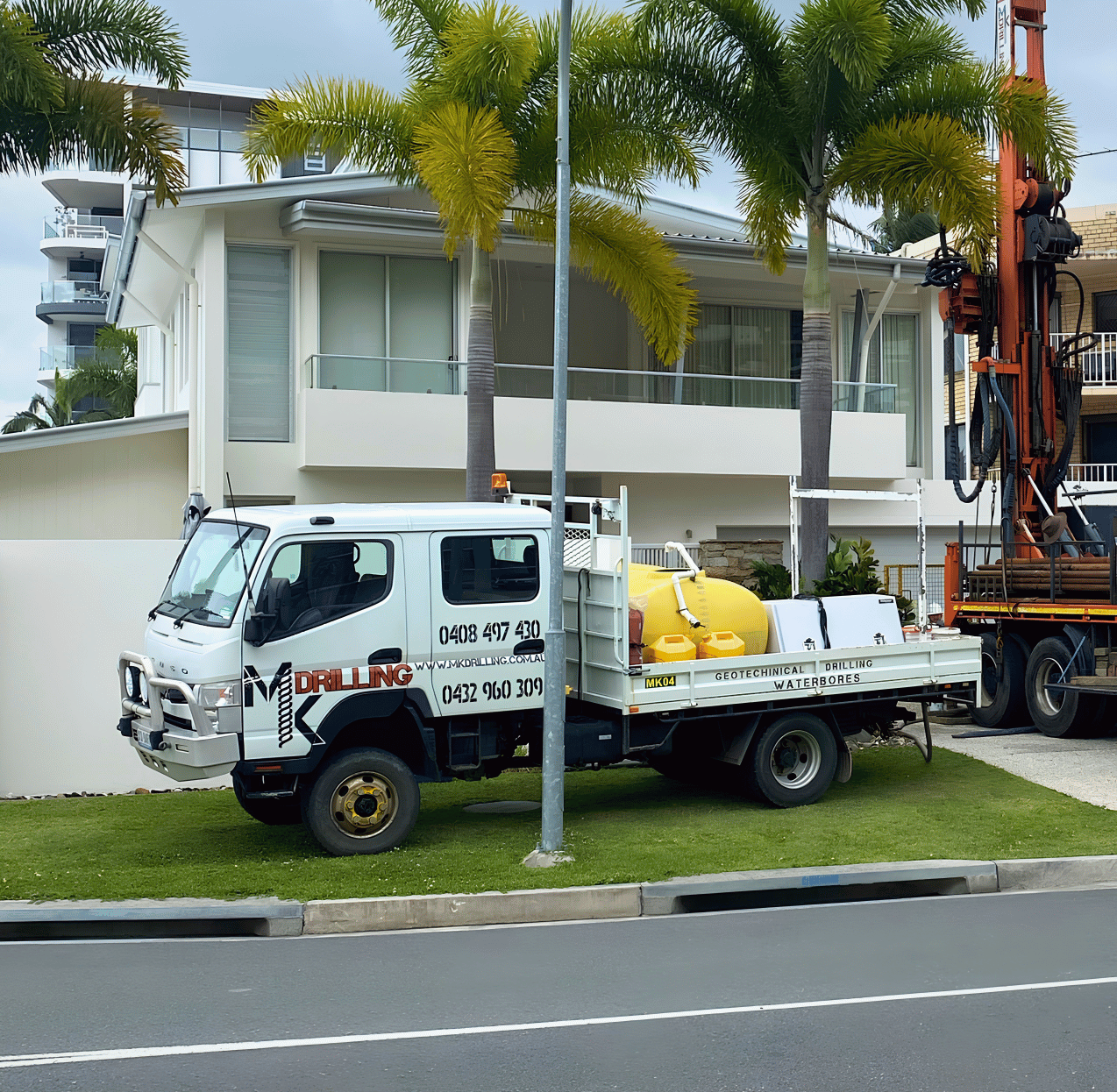

MK04 FUSO CANTER 4x4
Inclusions:
Flashing Light, UHF
First Aid Kit, 1500L Water Tank
Flashing Light, UHF
First Aid Kit, 1000L Water Tank
Download Brochure

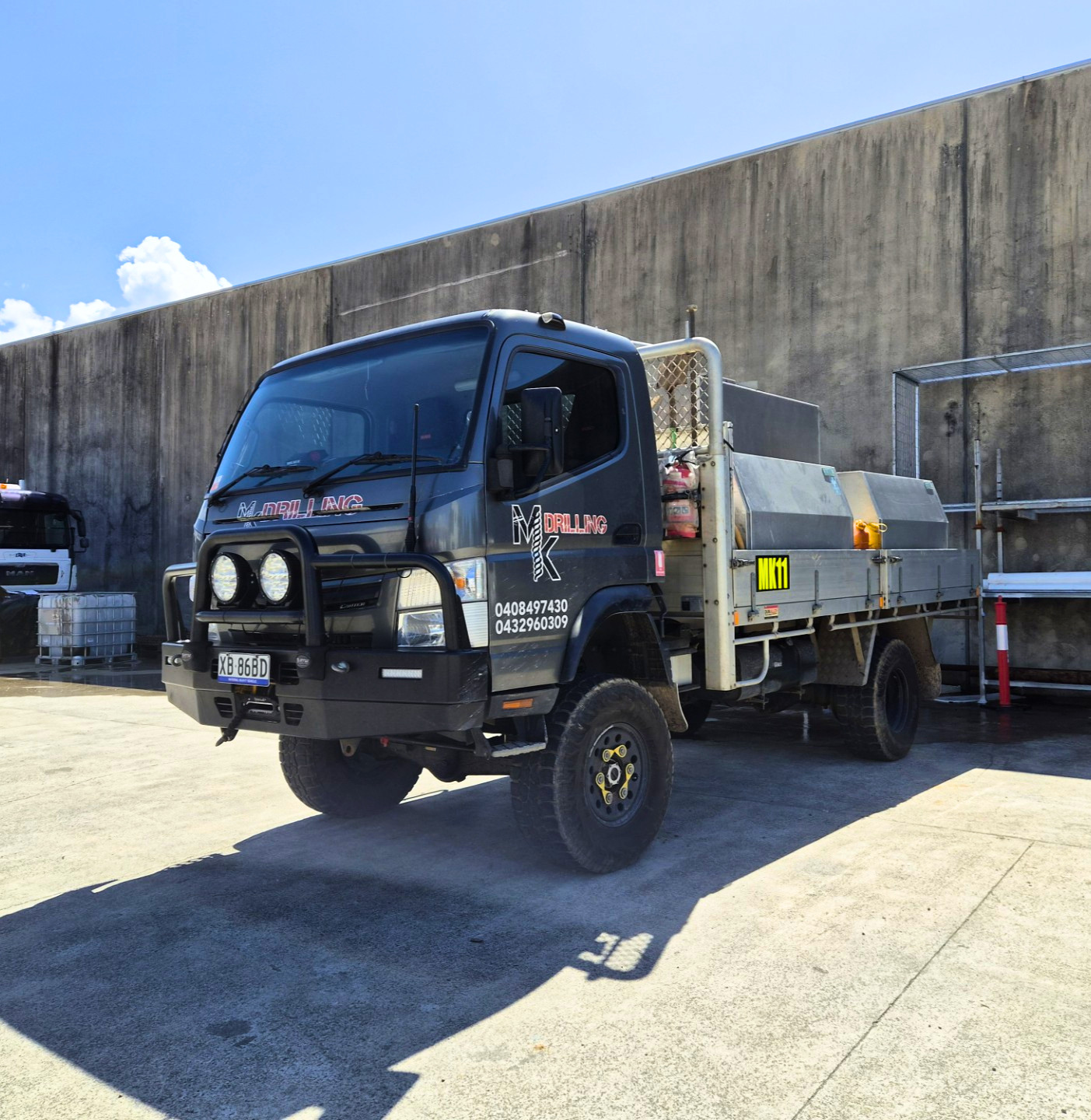

MK11 FUSO CANTER 4x4
Inclusions:
Front mount winch, UHF
Flashing Light, 1700L Water Tank
First Aid Kit
Front mount winch, UHF
Flashing Light, 1700L Water Tank
First Aid Kit
Download Brochure

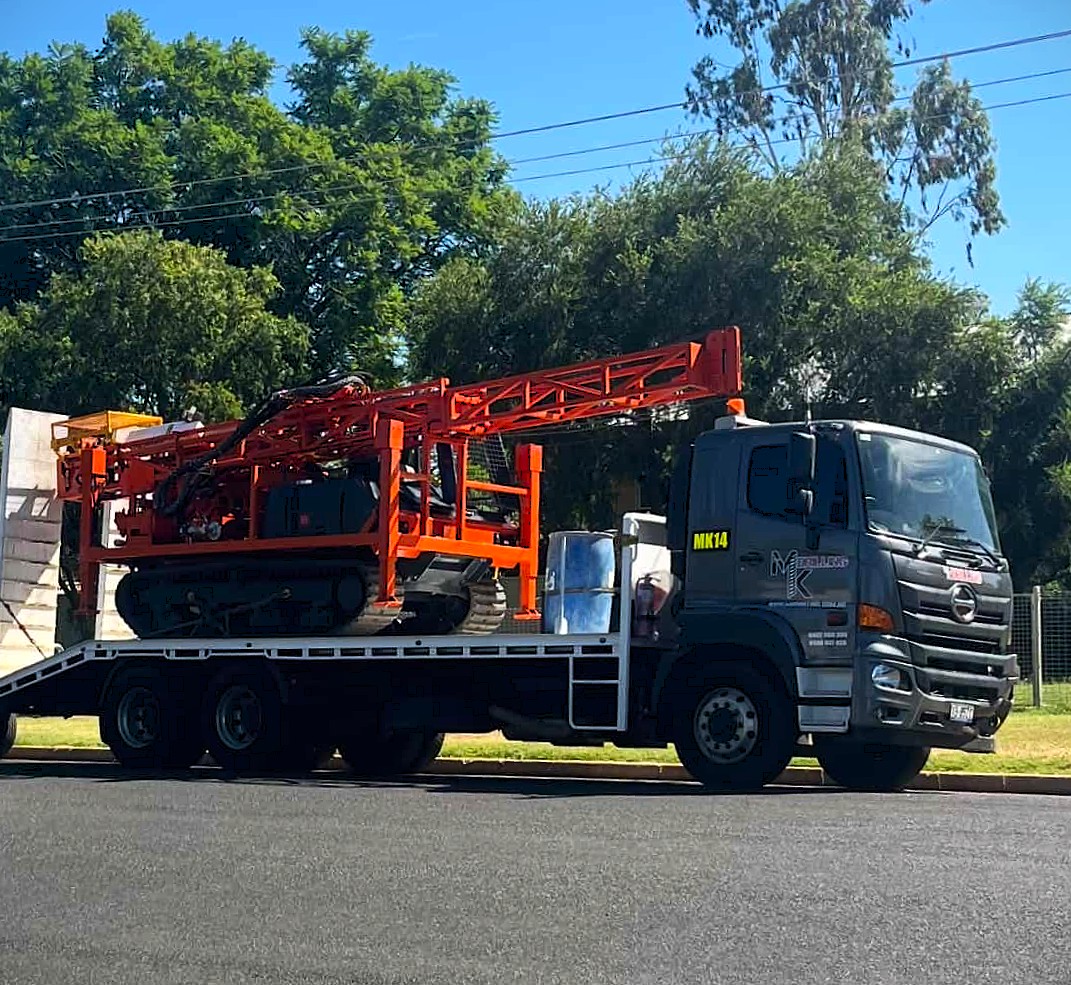

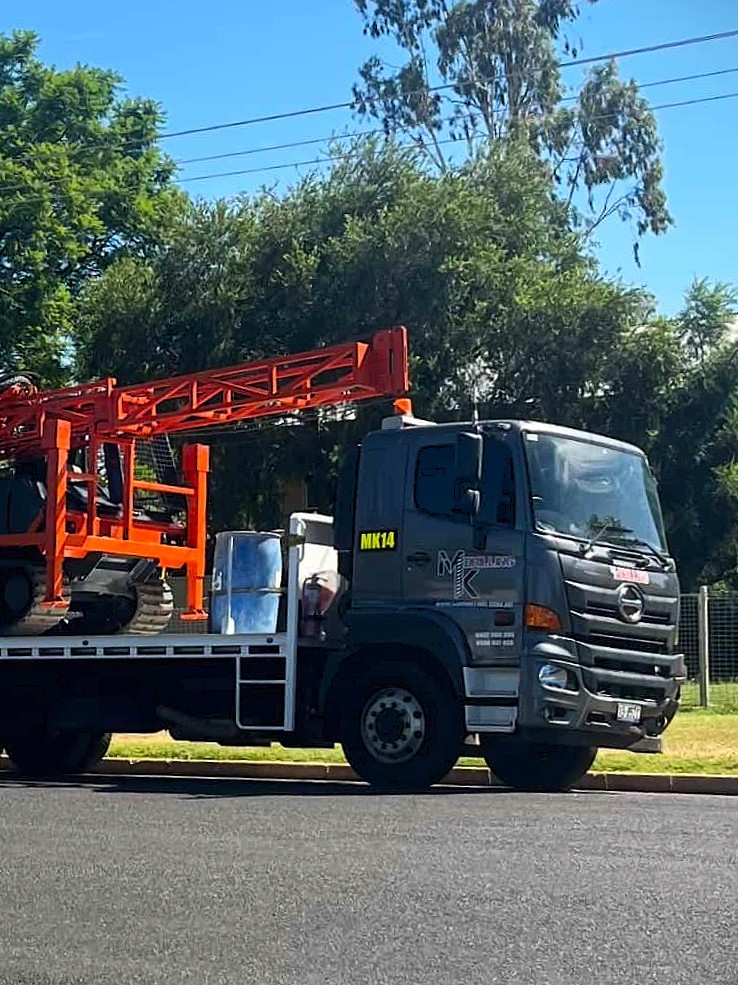

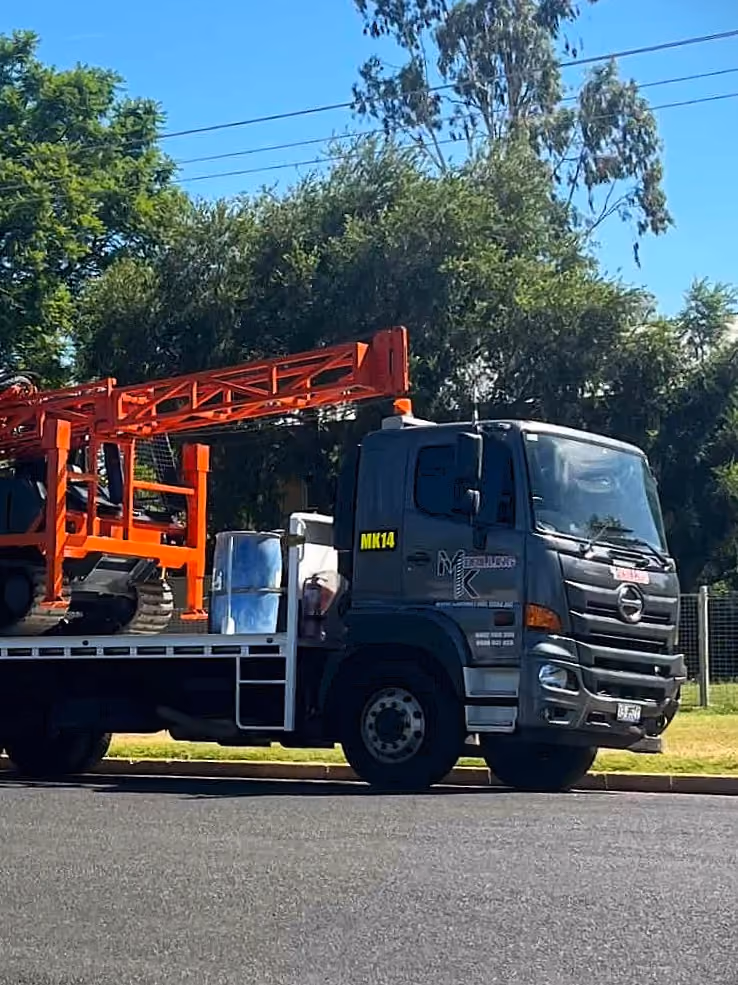

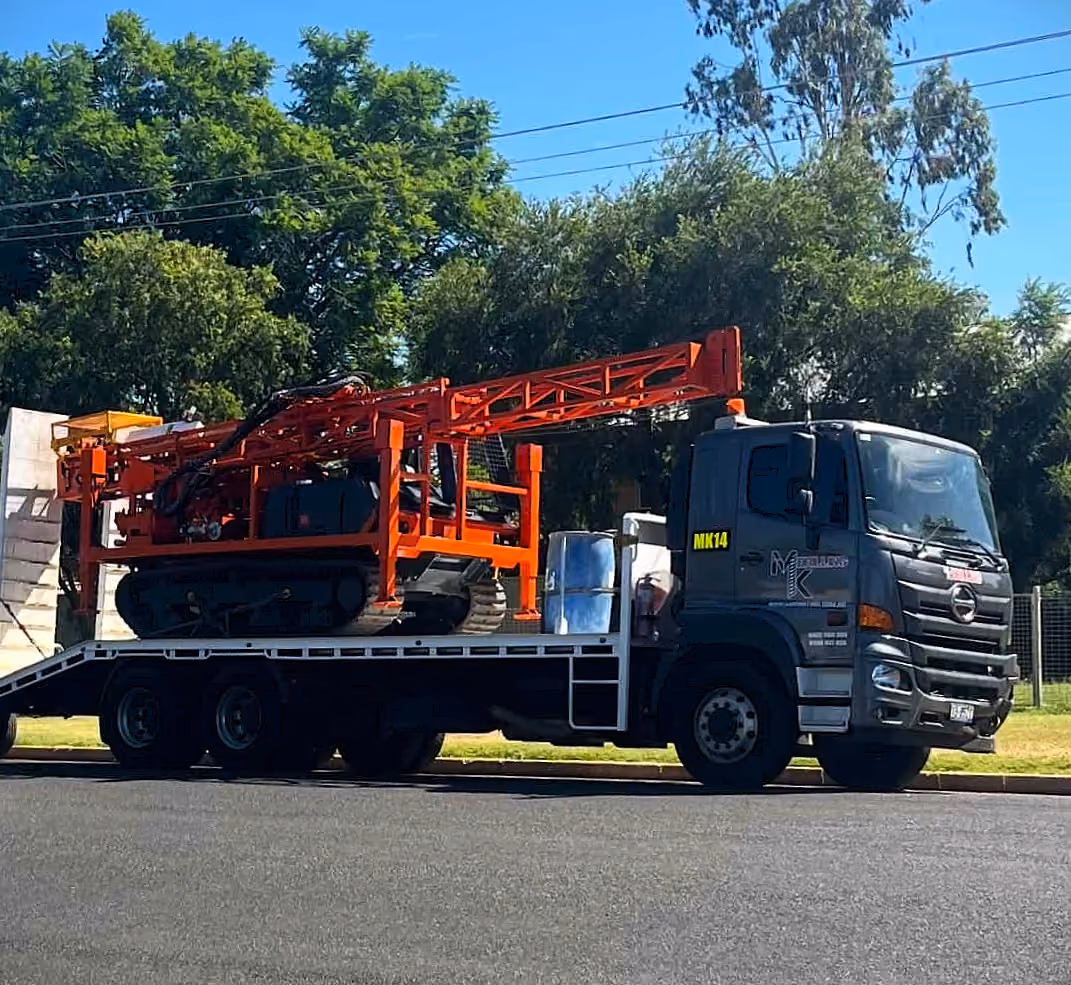

MK14 YANMAR TRACKED CARRIER
Inclusions:
Front mount winch, UHF
First Aid Kit, 1500L Water Tank
Flashing Light
Download Brochure

Discover the Exceptional Features of Our Geotechnical Rigs

Our geotechnical rigs are engineered for precision drilling, ensuring accuracy in every project. Equipped with advanced safety mechanisms, they prioritise the well-being of both operators and the environment. Each rig is designed with sustainability in mind, minimising ecological impact while delivering outstanding performance.

Precision Drilling for Accurate Geotechnical Investigations

Achieve unparalleled accuracy with our state-of-the-art drilling technology.

Robust Safety Mechanisms for Enhanced Operator Protection

Our rigs incorporate multiple safety features to safeguard operators at all times.

Environmental Considerations for Sustainable Operations

Designed with environmental stewardship in mind, our rigs minimise ecological footprints.

Your Ground, Our Expertise

Comprehensive Geotechnical Solutions Across Australia

Queensland

Learn

Northern Territory

Learn

New South Wales

Learn

Tasmania

Learn

South Australia

Learn

Western Australia

Learn

Victoria

Learn

Reach out to discuss your next project.

Ready to take the next step? Contact MK Drilling today for expert assistance or to request a personalized quote tailored to your needs.
